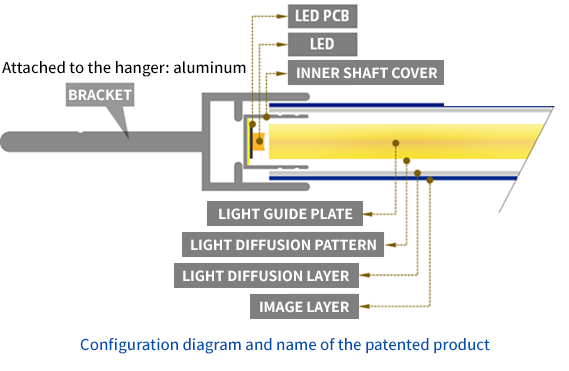

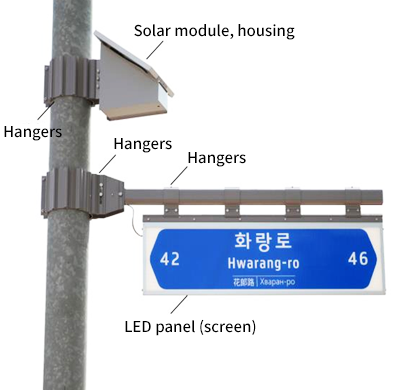

Product configuration diagram (road name)
Product features	Uniform screen brightness To get more use out of the light source, it uses optical functions on the light guide plate to improve light efficiency and secure visibility. Light loss is minimized by reducing the distance between the light source and the screen. Slim display Thin display with no luminance unevenness and a screen thickness of 20 mm or less. Low-power products, using 50 % less energy compared to existing products The two light guide plates and two light LED internal lighting devices used in existing products were improved so that only one of each is needed. The distance between the LED light sources was increased to 15 mm (previously 10 mm), while a smaller number of light sources were used and the heat dissipation area was increased, thereby solving the overheating problem.
Technical characteristics	Slim low-power technology
	Products using existing technology	Products using our technology

	· Two light-emitting diodes and two sets of LEDs for double-sided lighting · Thick products (60 mm to 100 mm) mean increased weight and visibility of damage · Renewable-energy power supply is insufficient due to high power consumption ※ Road name plate (1550×350) standard solar module 60 W×2 EA, 80 Ah battery required · Measured power consumption: 13.3 W	· Irradiated with one light guide plate and one LED set for double-sided lighting · Slim product (20 mm) is light and design is beautiful (more than 30% less weight) · New and renewable energy sources work well due to low power consumption ※ Road name plate (1550×350) standard solar module 60 W×1 EA, 40 Ah battery required · Measured power consumption: 6.11W

	Uniform screen illumination and efficient built-in design Eliminated light leakage with proper bezel design. Improved screen by taking advantage of LED light angle Minimized light loss with efficient LED arrangement Waterproof and dustproof with double covers (inside and outside)

Technology

Solar Smart Sign System
