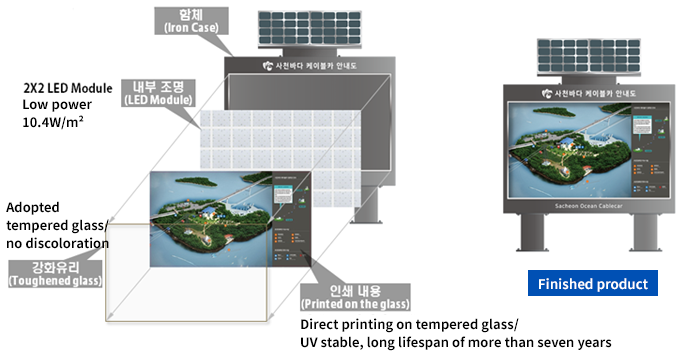

Product configuration diagram (composite sign boards)

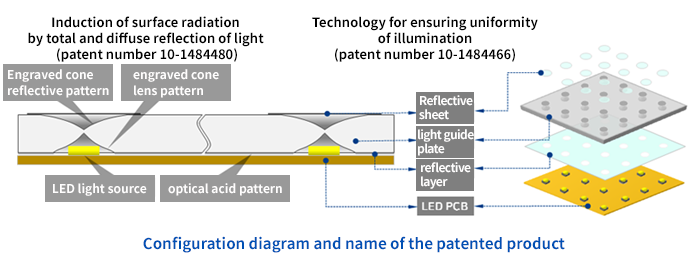

Product features	Realization of uniform screen brightness To get more use out of the light source, it uses a structure with optical functions (lens pattern or reflective pattern) on the light guide plate to improve light efficiency and secure visibility. Minimized light loss by reducing the distance between the light source and the screen Realization of thin displays Realized thin displays with a screen thickness of 50 mm or less and without luminance unevenness. Low-power products with less than 60% the power consumption of conventional products Developed and applied low-power 2x2 LED modules by improving high-power LED modules used in existing sign boards The distance between LED light sources was expanded to 75 mm, and the overheating problem was solved by increasing the heat dissipation area while using a smaller number of light sources.

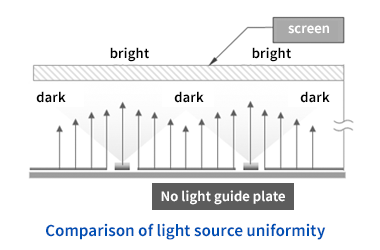

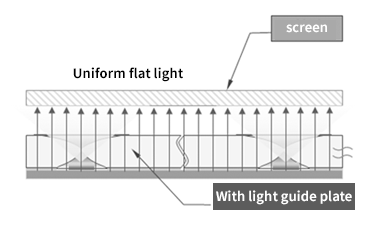

Technical characteristics	Eliminated luminance unevenness
	Existing technology products (direct)	Our technology products (direct)
